MOUNTING AND OPERATION

Action Figure Page

Removing and inserting the

battery

1 185

Charging 2 185

Remaining battery indicator 3 185

Installing / Removing the side

handle

4 185

Inserting SDS-plus drilling tools 5 186

Removing SDS-plus drilling tools 6 186

Selecting rotation direction 7 186

Selecting the operating mode 8 186

Adjusting the drilling depth 9 186

Changing the chisel position 10 186

Removing drill bit holder

(DH36DBQL, DH36DBML)

*1

11 187

Inserting drill chuck holder

(DH36DBQL, DH36DBML)

12 187

Inserting round shank applications

tools (DH36DBQL, DH36DBML)

13 187

Switch operation 14 187

How to use the LED light 15 187

Cleaning of the battery installation

compartment

16 187

Selecting accessories ―

188, 189

*1 If it is hard to pull out the drill chuck holder or the drill bit

holder, align the change lever with the

mark and turn

the lock grip.

For details on how to use the dust extraction unit, refer to

the separate instruction manual included with this tool.

(DH36DBDL/DH36DBML)

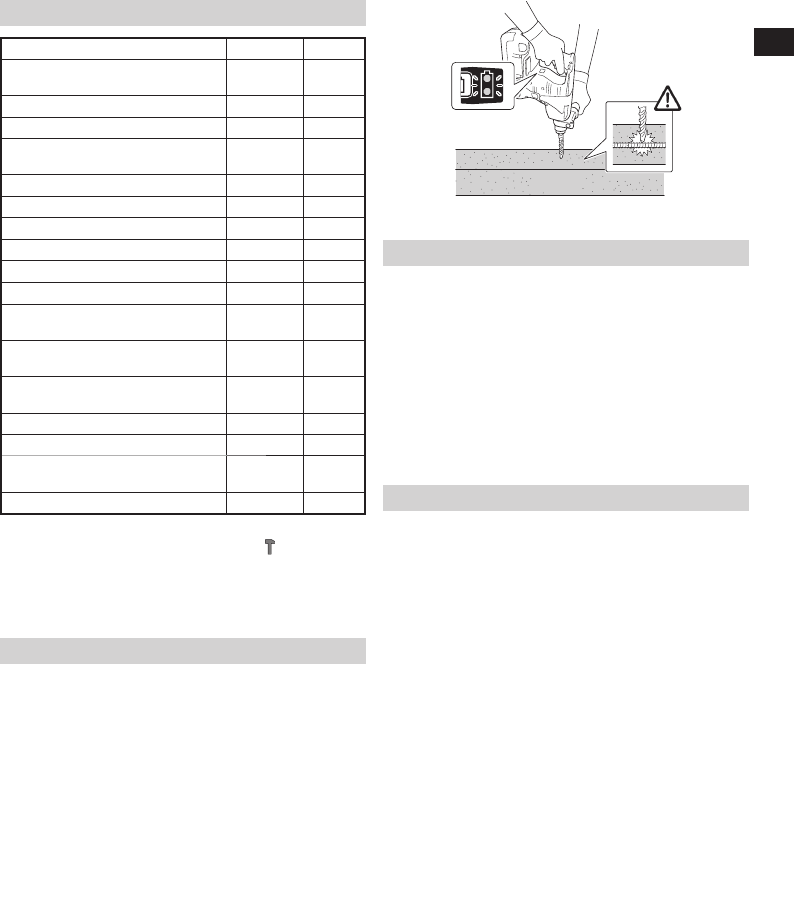

REACTIVE FORCE CONTROL

This product is equipped with a Reactive Force Control

(RFC) feature that reduces jerking of the tool body.

If the tool bit is suddenly overburdened, any jerking of the

tool body is reduced by activation of the slip clutch or by

stopping of the motor by the sensor built into the tool body.

If the motor is stopped because of overburdening detection

by the controller, this is indicated by blinking of the remaining

battery lamp while the switch is pulled. (Fig. 17)

Because the RFC feature may not activate or its performance

may be insuffi cient depending on the working environment

and conditions, be careful not to suddenly overburden the

tool bit while operating.

● Possible causes of sudden overburdening

1 Tool bit biting into material

2 Impact against nails, metal or other hard objects

3 Tasks involving prying or any excess application of

pressure, etc.

Also, other causes include any combination of the

aforementioned.

● When the reactive force control (RFC) is triggered

When the RFC is triggered and the motor stops, turn

off the tool’s switch and remove the cause of the

overburdening before continuing operation.

Fig. 17

LUBRICATION

Low viscosity grease is applied to this rotary hammer so

that it can be used for a long period without replacing the

grease. Please contact the nearest service center for grease

replacement when any grease is leaking form loosened

screw.

Further use of the rotary hammer despite the grease

shortage causes damage to reduce the service life.

CAUTION

A specifi c grease is used with this machine, therefore,

the normal performance of the machine may be badly

aff ected by use of diff erent grease. Please be sure to let

one of our service centers to undertake replacement of

the grease.

MAINTENANCE AND INSPECTION

CAUTION

Be sure to turned off the switch and remove the battery

before maintenance and inspection.

1. Inspecting the tool

Since use of as dull tool will degrade effi ciency and

cause possible motor malfunction, sharpen or replace

the tool as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that

they are properly tightened. Should any of the screws be

loose, retighten them immediately. Failure to do so could

result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power

tool. Exercise due care to ensure the winding does not

become damaged and/or wet with oil or water.

4. Cleaning on the outside

When the power tool is stained, wipe with a soft dry cloth

or a cloth moistened with soapy water. Do not use chloric

solvents, gasoline or paint thinner, for they melt plastics.

5. Cleaning of the battery installation compartment

After drilling concrete, if concrete dust has accumulated

on the terminals or the area where the battery slides

within the battery installation compartment, clean off the

accumulated concrete dust with a dry cloth before using

the tool. (Fig. 16)

Also, after cleaning, ensure that the battery can be

installed and removed smoothly from the tool.

CAUTION

Using the tool when the battery is covered with concrete

dust may lead to accidents such as the battery falling

during use.

Furthermore, such use may cause a malfunction or

contact failure between the battery and the terminals.

6. Storage

Store the power tool in a place in which the temperature

is less than 40°C and out of reach of children.

0000Book̲DH36DBL.indb70000Book̲DH36DBL.indb7 2017/03/2917:03:392017/03/2917:03:39
